Woven Belted Silt Fence (WBSF™) Combo

NTPEP Compliant

Patent # US 8,747,027

The WBSF Combination Fence is WBSF 2 Stage Silt Fence with an additional delineation layer across the top.

Silt Saver WBSF Combo is another in the line of Silt Saver’s Woven Belted Silt Fences designed as alternatives to wire back silt fence that do not require wire and / or net backing. Perfect for use in areas with maximum stormwater flow that also require delineation. WBSF Combo is a 36″ tall woven polypropylene geotextile with four >350lb. tensile strength belts woven into the fabric making this silt fence one of the strongest on the market.  The internal belts used as attachment points allow this fabric to distribute the weight of stormwater and sediment throughout the system allowing the fence to hold maximum loads without additional support. The 2 Stage technology used in this fence allows it to meet the challenge of those areas on your site with heavier than normal stormwater flow. 2 Stage technology was designed to allow for enhanced sediment retention and stormwater release while maintaining the same WBSF structural integrity and strength. The first stage (lower 12 inches above ground level) is nominal 50 sieve woven fabric to facilitate the greatest sediment retention. The second stage (upper 12 inches) is nominal 20 sieve woven fabric providing controlled release of stormwater during heavy rain events reducing overtopping and undermining. Finally, the green high visibility band across the top of the fence provides additional delineation. Installing one fence to do two jobs can save time and money on your site. WBSF Combination fence is available on pre-assembled hardwood stakes (1 ¾” X 1 ¼” X 4’) at 4’ centers (designed for heavy duty) or 6’ centers (designed for medium duty) sensitive areas. It is also available as master rolls of 500 or 1000 feet for application on wood or steel posts. Sourced and made in America.

Stake Option

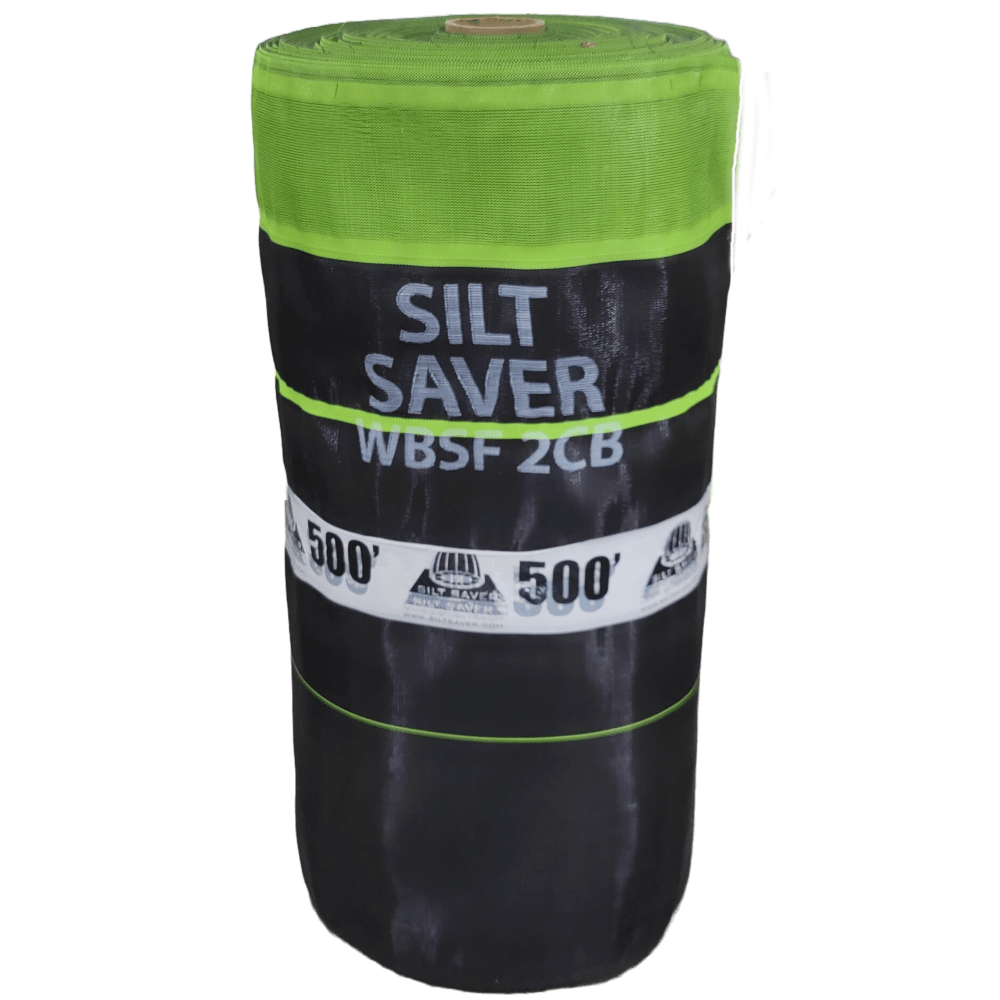

Master Roll – No Stake 500’ Roll (WBSF2CB-500)

Your Part Number Is: WBSF2CB-500

Master Roll – No Stake 500’ Roll (WBSF2CB-500)

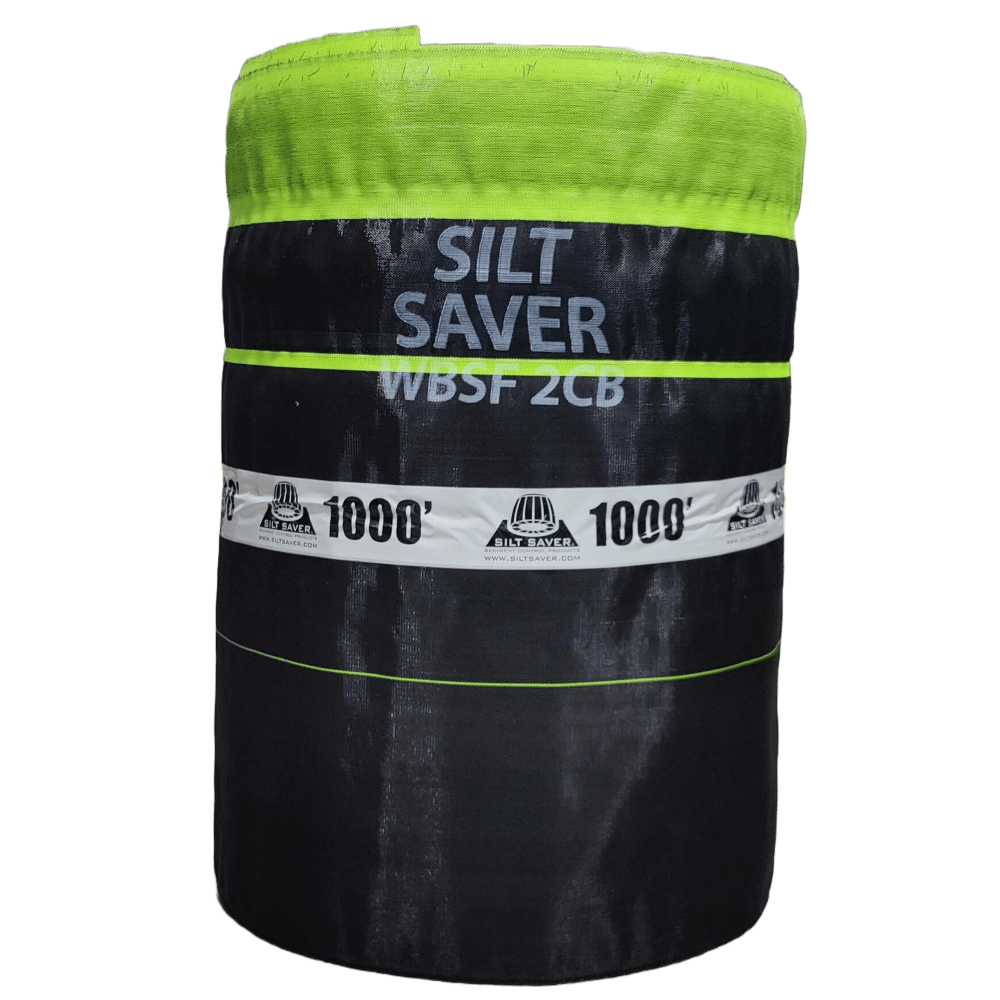

Master Roll – No Stake 1000’ Roll (WBSF2CB-1000)

Your Part Number Is: WBSF2CB-1000

Master Roll – No Stake 1000’ Roll (WBSF2CB-1000)

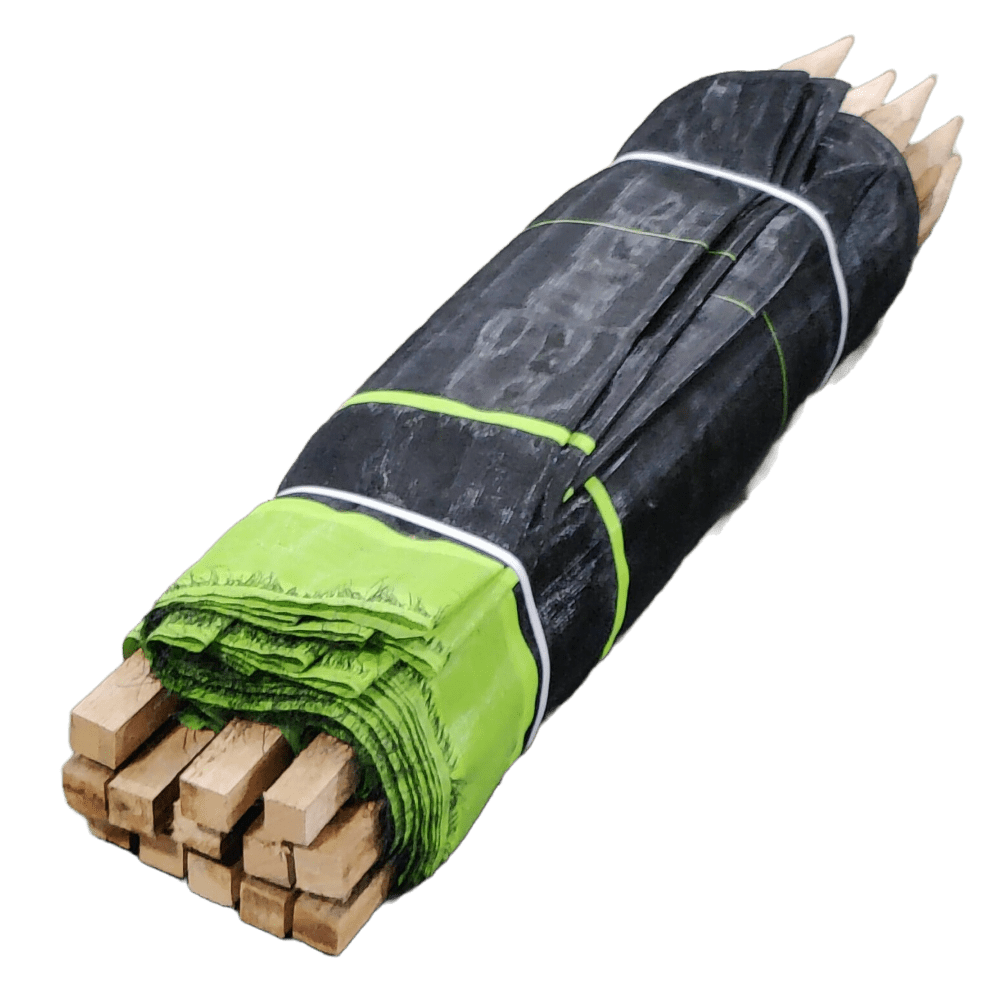

4’ Center – Oak/Hardwood posts 48’ Roll (WBSF2CB-4)

Your Part Number Is: WBSF2CB-4

4’ Center – Oak/Hardwood posts 48’ Roll (WBSF2CB-4)

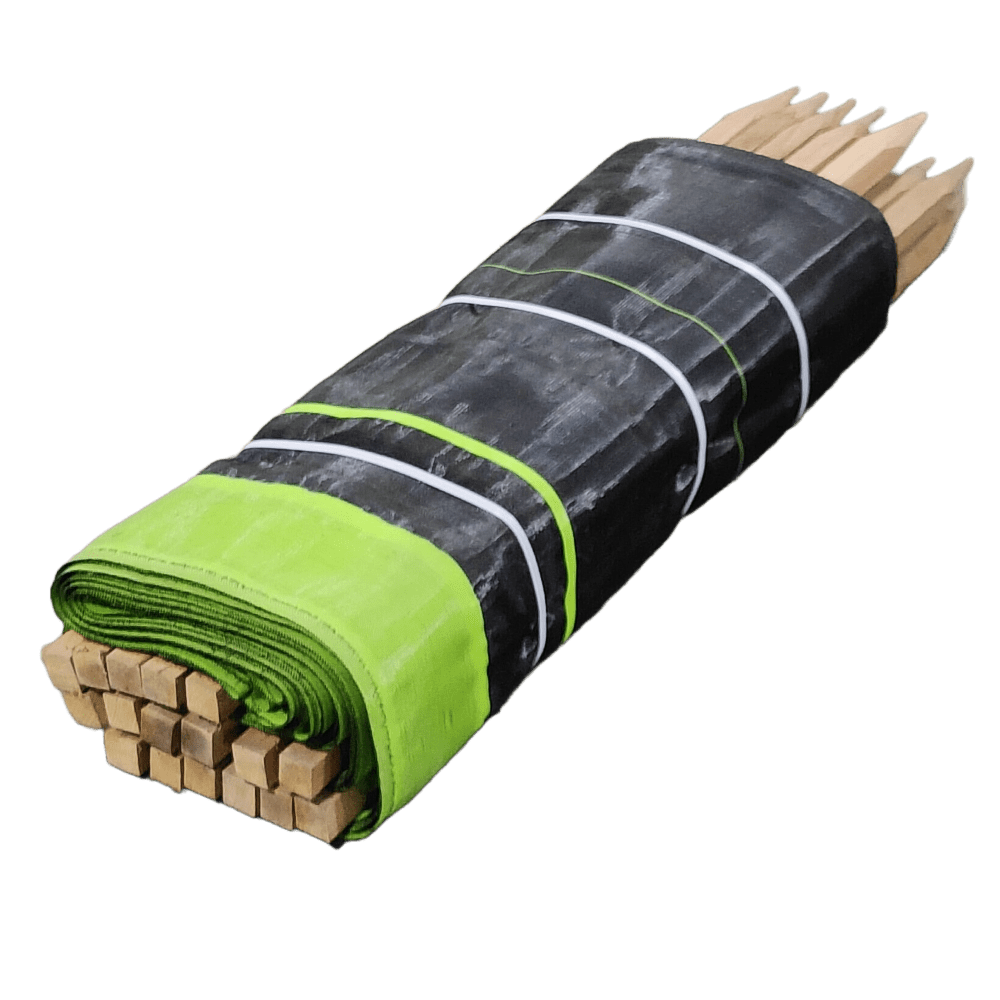

6’ Center – Oak/Hardwood posts 100’ Roll (WBSF2CB-6)

Your Part Number Is: WBSF2CB-6

6’ Center – Oak/Hardwood posts 100’ Roll (WBSF2CB-6)

Advantages

The WBSF Combination Fence was designed as one silt fence to accomplish 2 objectives: the stormwater release and sediment retention created with 2 Stage Technology PLUS delineation in one fence. 2 Stage technology was designed to allow for enhanced sediment retention and stormwater release while maintaining the same WBSF structural integrity and strength. The first stage (lower 12 inches above ground level) is nominal 50 sieve woven fabric to facilitate the greatest sediment retention. The second stage (upper 12 inches) is nominal 20 sieve woven fabric providing controlled release of stormwater during heavy rain events reducing overtopping and undermining. Structural belts are woven into the fabric as attachment points providing linear strength consistent with all Silt Saver WBSF products. This combination fence then adds the additional benefit of a high visibility top for delineation. Installing one fence to do two jobs saves time and money on your site.

  • Structurally enhanced silt fence with internal reinforcement belts woven into the material
  • NO wire / net backing needed
  • Available on pre-assembled hardwood stakes at 4’ centers (designed for heavy duty) or 6’ centers (designed for medium duty) sensitive areas
  • Available in 500’ or 1000’ rolls.
  • May be attached to metal posts using woven belts as attachment points as required
  • Can be installed by trenching or slicing / plowing
  • Sourced and made in America
