Woven Belted Silt Fence (WBSF™) 2 Stage

NTPEP Compliant

Patent # US 8,747,027

Woven Belted Silt Fence – 2 Stage is an alternative to wire back silt fence that does not require wire and / or net backing and was designed to address areas with the heaviest stormwater flow.

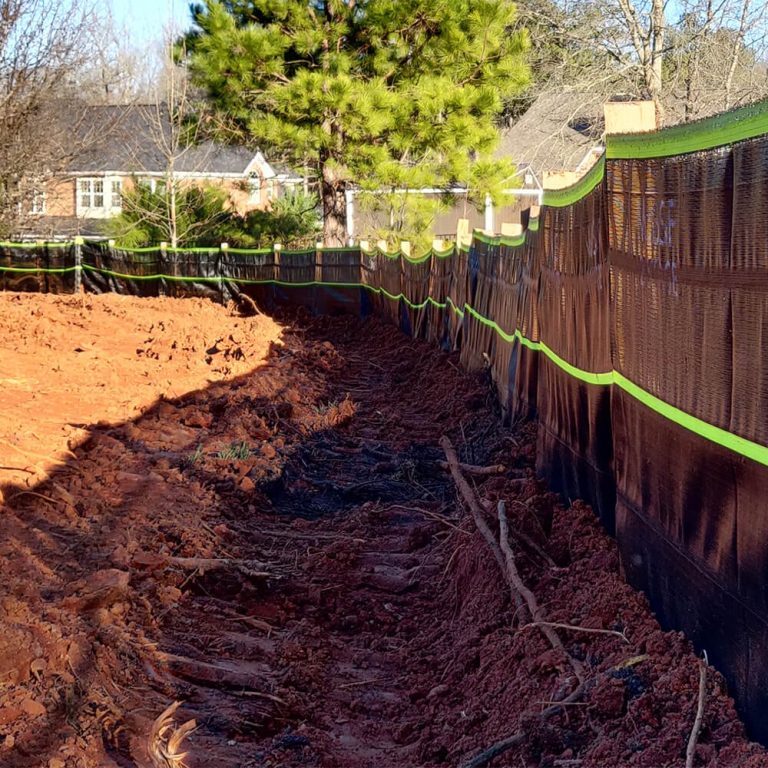

Silt Saver WBSF 2 Stage is a 36″ tall woven polypropylene geotextile with four >350lb. tensile strength belts woven into the fabric making this line of silt fence one of the strongest on the market. The internal belts used as attachment points allow this fabric to distribute the weight of stormwater and sediment throughout the system allowing the fence to hold maximum loads without additional support. The 2 Stage WBSF was designed specifically to meet the challenge of those areas on your site with heavier than normal stormwater flow. Heavy stormwater flow often leads to silt fence failures by creating undermining below the fence or over topping above, both of which threaten structural integrity and sediment retention. This 2 Stage fence was engineered with both controlled stormwater release and sediment retention in mind. Stage One above the ground line is 50 sieve to retain sediment with superior efficiency, while Stage Two provides controlled stormwater release allowing greater than 300 gallons per minute per square foot stormwater flow. This controlled stormwater release along the length of the fence allows the water to be more evenly distributed across the fence reducing the risk of failure at the lowest point. 2 Stage WBSF is available on pre-assembled hardwood stakes (1 ¾” X 1 ¼” X 4’) at 4’ centers for heavy duty or 6’ centers for medium duty sensitive areas. It is also available as master rolls of 500 or 1000 feet for application on wood or steel posts. Sourced and made in America.

Stake Option

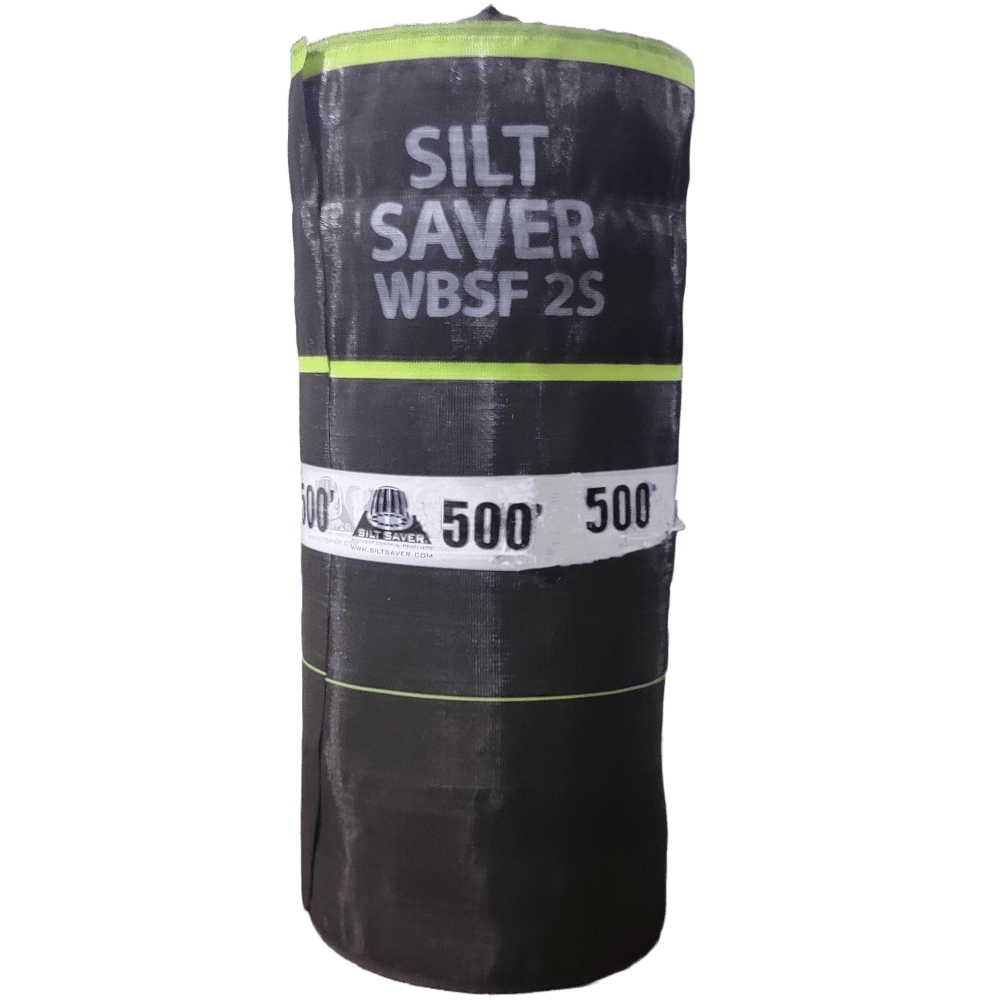

Master Roll – No Stake 500’ Roll (WBSF2S-500)

Your Part Number Is: WBSF2S-500

Master Roll – No Stake 500’ Roll (WBSF2S-500)

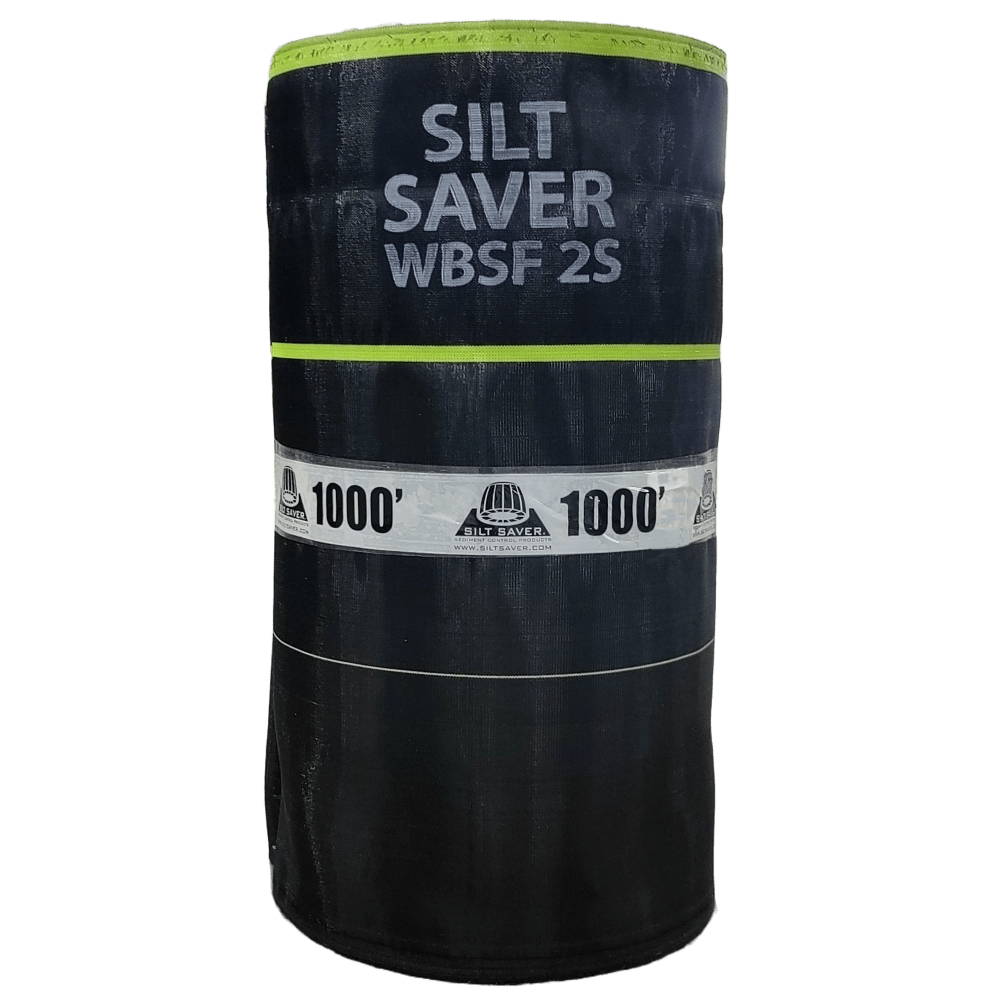

Master Roll – No Stake 1000’ Roll (WBSF2S-1000)

Your Part Number Is: WBSF2S-1000

Master Roll – No Stake 1000’ Roll (WBSF2S-1000)

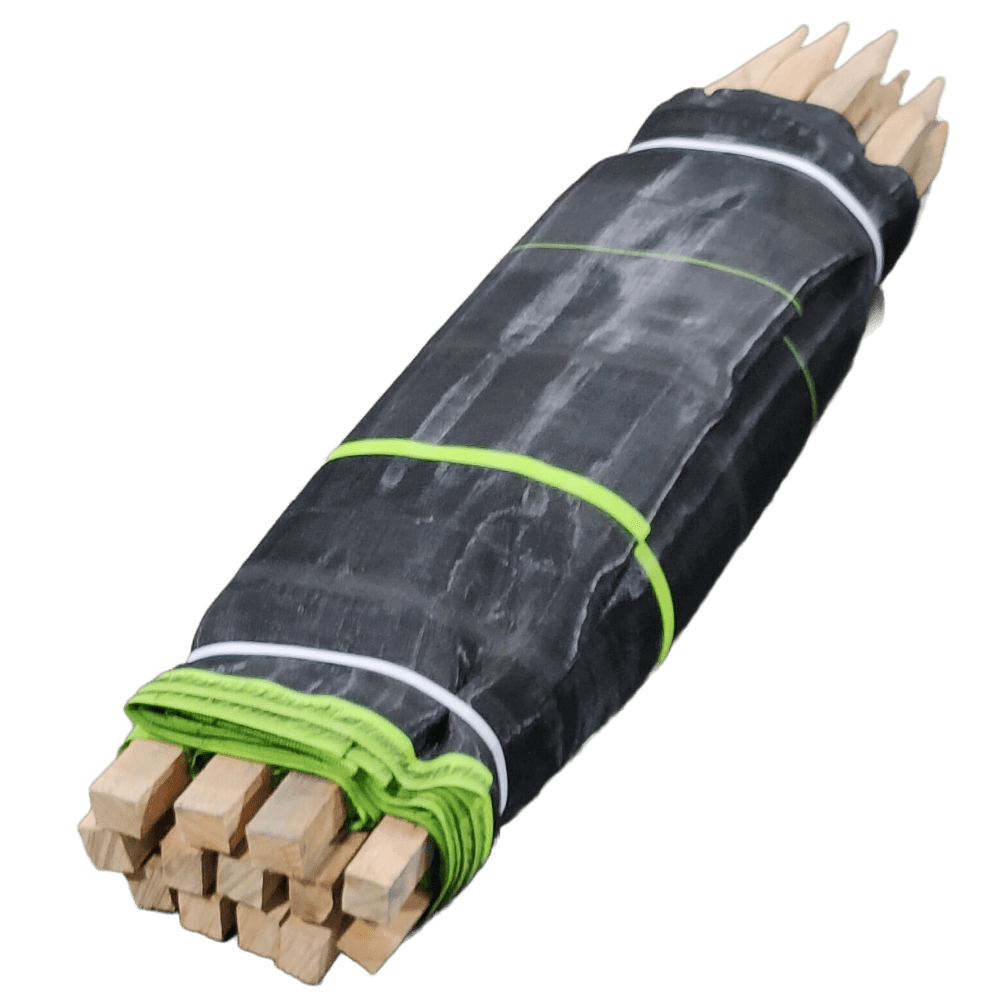

4’ Center – Oak/Hardwood posts 48’ Roll (WBSF2S-4)

Your Part Number Is: WBSF2S-4

4’ Center – Oak/Hardwood posts 48’ Roll (WBSF2S-4)

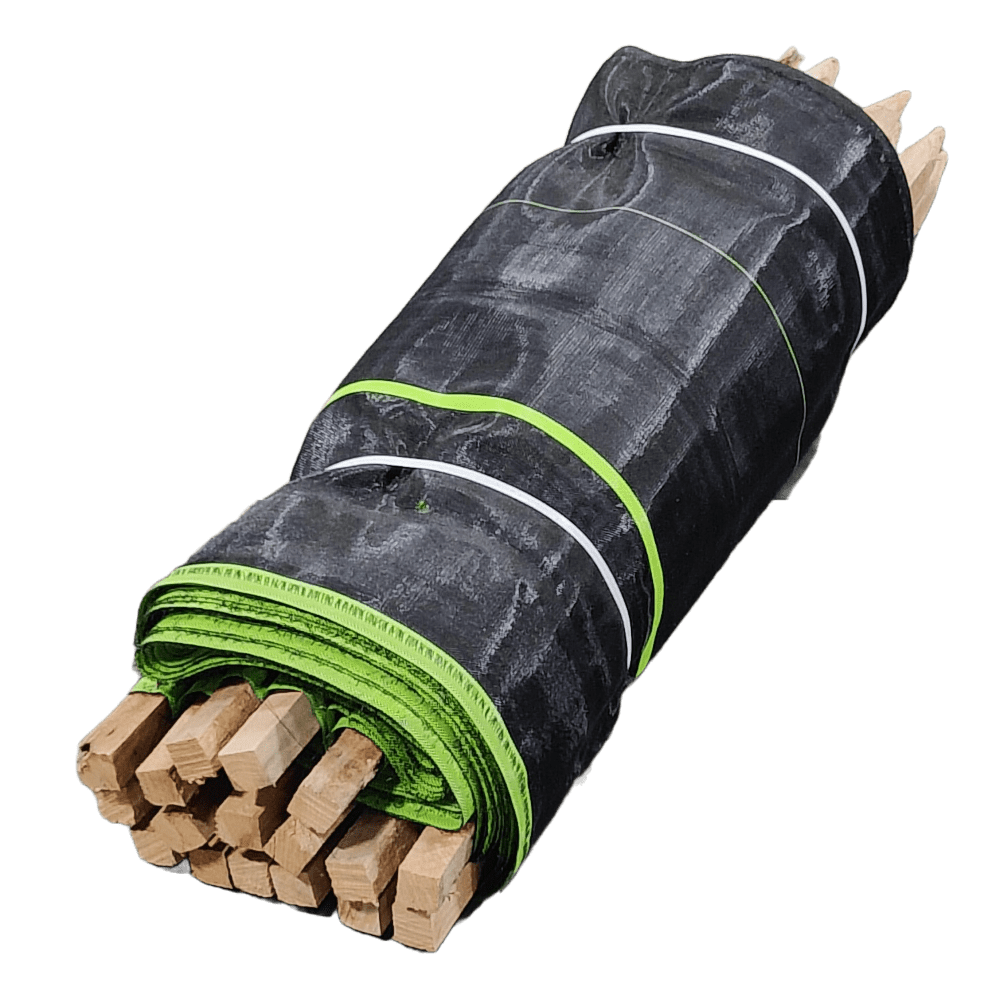

6’ Center – Oak/Hardwood posts 100’ Roll (WBSF2S-6)

Your Part Number Is: WBSF2S-6

6’ Center – Oak/Hardwood posts 100’ Roll (WBSF2S-6)

Advantages

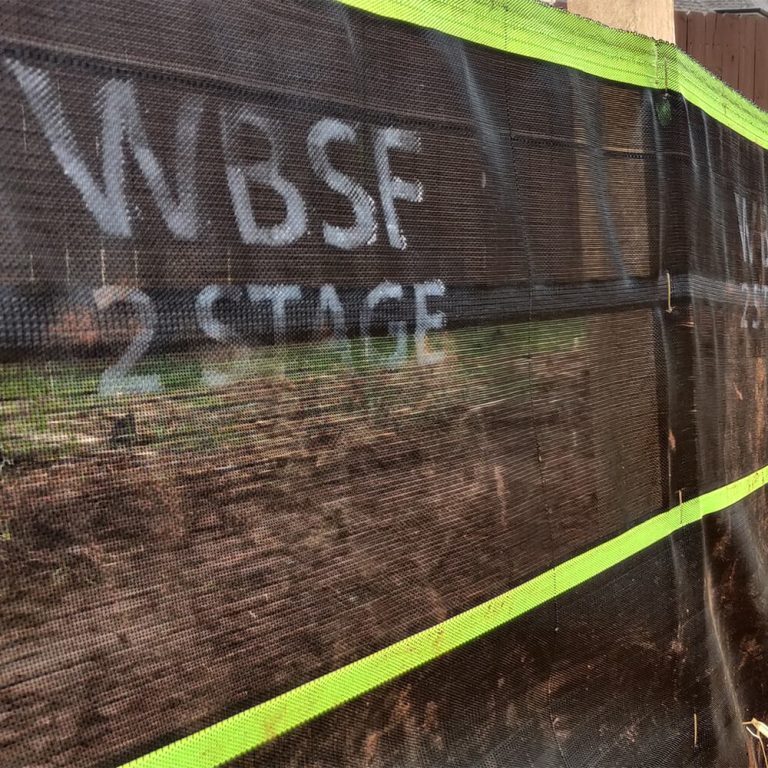

The 2 Stage technology was designed to allow for enhanced sediment retention and stormwater release while maintaining the same WBSF structural integrity and strength. The first stage (lower 12 inches above ground level) is nominal 50 sieve woven fabric to facilitate high efficiency sediment retention. The second stage (upper 12 inches) is nominal 20 sieve woven fabric (>300 gal/min/ft2) providing controlled release of stormwater during heavy rain events reducing the potential for overtopping and undermining. This “skimming” of the top portion of the stormwater reduces hydrostatic pressure on the silt fence system as a whole and together with the structural belts that are woven into the WBSF fabric as attachment points, provides improved performance unique to this system.

  • Structurally enhanced silt fence with internal reinforcement belts woven into the material
  • NO wire / net backing needed
  • Available on pre-assembled hardwood stakes at 4’ centers (designed for heavy duty) or 6’ centers (designed for medium duty) sensitive areas
  • Available in 500’ or 1000’ rolls.
  • May be attached to metal posts using woven belts as attachment points as required
  • Can be installed by trenching or slicing / plowing
  • Sourced and made in America
